RA8D1 Evaluation Board
ARM Cortex-M85 @ 400 MHz

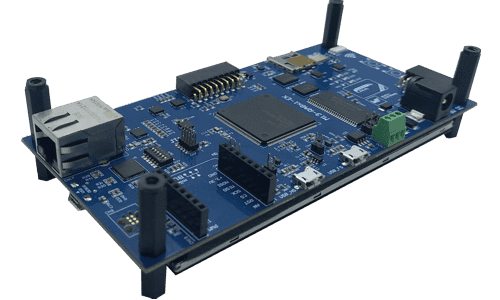

M13design M13-RA8D1-EK is a complete evaluation and development platform for the Renesas Electronics® based RA8D1 Cortex®-M85 R7FA8D1BHECFC microcontroller. The many hardware features on the board helps users to quickly evaluate all the available peripherals (OctaFlash/RAM, 10/100-Mbit Ethernet, microSD™ card, 5.0-inch LCD-TFT MIPI display with capacitive touch panel, USB host/device, Audio codec with 4-pole Jack, Quad-SPI Flash memory, and many others) and to develop their custom applications. PMOD™ and mikroBUS™ connectors make it possible to easily extent the boards features (Sensors, communication and network modules and many more). The integrated JLink-OB debug probe provides in-circuit debug and programming for the RA8D1 device and also a built-in VCOM functionality.

Main Features

MCU

  • RA8D1 MCU | R7FA8D1BHECFC
  • ARM Cortex-M85 Core @ 400 MHz
  • LQFP176 Package
  • 2 MByte Code Flash, 1 MByte SRAM
  • Renesas Secure IP (RSIP 7)

MEMORY / STORAGE

  • 32 MByte SDRAM
  • 32 MByte OctaFlash
  • 8 MByte OctaRAM
  • 128 Kbit I2C EEPROM
  • microSD Interface

GRAPHICS & CAMERA

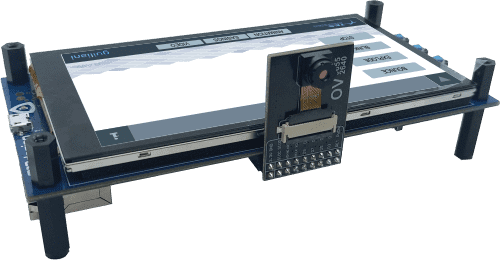

  • 5.0-inch 800x480 TFT-LCD Panel
    with MIPI InterfaceKEY FEATURE
  • Capacitive Touch Panel
  • 8-bit Camera Interface (20-pin Interface connector)

COMMUNICATION

  • Ethernet (RMII and PHY)
  • Embedded Wi-Fi chipset (SDIO interface)KEY FEATURE
  • USB 2.0 Full-Speed (Host/Device)
  • CAN-FD

DEBUG

  • Onboard Debugger J-Link-OB™ (SWD/JTAG)
  • Virtual COM Port

OTHER FEATURES

  • 3-axis Accelerometer
  • 3 x User LEDs
  • 2 x User Switch
  • 1 x Reset Switch

EXPANSION

  • 1 x Digilent PMOD™ Interface
  • 1 x mikroBUS™ Interface

PCB Layout

  • LQFP MCU packageKEY FEATURE
  • 4-layer PCB configurationKEY FEATURE
  • Cost effective layout designKEY FEATURE

Ordering Information

Part Number Description In Stock Unit Price Buy
M13-RA8D1-EK RA8D1 Evaluation Kit Q2 2024 350.00 EUR Contact Us

All sales related inquiries (webshop, custom quotation) are handled by our sales partner Cynetis Embedded.

Documents

Document Title Description Format Size Date
M13-RA8D1-EK Datasheet Datasheet PDF 326 KB Dec. 05 2023
M13-RA8D1-EK Schematic Schematic PDF 1.17 MB Feb. 05 2024
M13-RA8D1-EK BOM BOM XLSX 24 KB Feb. 05 2024
