RA6M3 Evaluation Board
ARM Cortex-M4 @ 120 MHz

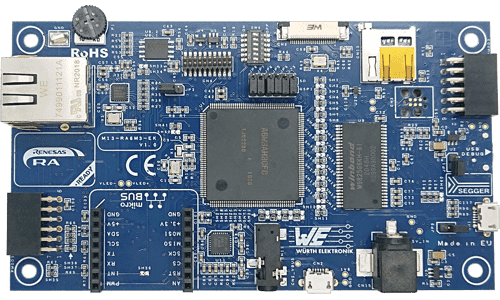

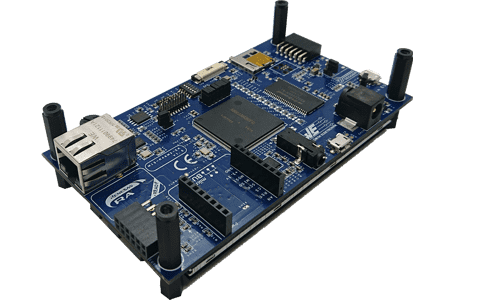

M13design RA6M3-EK is a complete evaluation and development platform for the Renesas Electronics® based RA6M3 Cortex®-M4 R7FA6M3AH3CFC microcontroller. The many hardware features on the board helps users to quickly evaluate all the available peripherals (10/100-Mbit Ethernet, microSDTM card, USB host/device, Audio codec with 4-pole Jack, SDRAM, Quad-SPI Flash memory, 4.3-inch colour LCD-TFT with capacitive touch panel, and many others) and to develop their custom applications. PMOD™ and mikroBUS™ connectors make it possible to easily extent the boards features (Sensors, communication and network modules and many more). The integrated JLink-OB debug probe provides in-circuit debug and programming for the RA6M3 device and also a built-in VCOM functionality.
Main Features
MCU
- RA6M3 MCU | R7FA6M3AH3CFC
- ARM Cortex-M4 Core @ 120 MHz
- LQFP176 Package
- 2 MByte Code Flash, 640 KByte SRAM
- Secure Crypto Engine (SCE7)
MEMORY / STORAGE
- 32 MByte External QSPI Flash
- 16 Kbit I2C EEPROM
- 32 MByte SDRAM (soldered on the board but by default disconnected from the RA6M3)
- microSD Interface
GRAPHICS & CAMERA

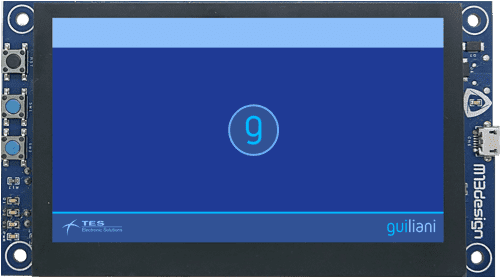

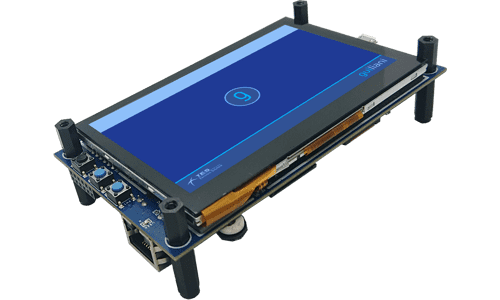

- Onboard 4.3-inch 480x272 TFT LCD
- Capacitive Touch Panel
- 8/10-bit Camera Interface
COMMUNICATION
- Ethernet (RMII and PHY)
- 2 x USB connector (Host/Device)
DEBUG
- Onboard Debugger J-Link-OB™ (SWD/JTAG)
- Virtual COM Port
OTHER FEATURES
- Audio Codec with 4 pole 3.5mm Headphone Connector
- 3-axis Accelerometer
- 3 x User LEDs
- 2 x User Switch
- 1 x Reset Switch
EXPANSION
- 2 x Digilent PMOD™ Interface
- 1 x mikroBUS™ Interface
Ordering Information
All sales related inquiries (webshop, custom quotation) are handled by our sales partner Cynetis Embedded.
Please refer to the comparison table below for selecting the right version:
| Features | Default version M13-RA6M3-EK | SDRAM Ready version M13-RA6M3-EK-SDRAM |
| 32 MByte external SDRAM | ||
| 32 MByte external Serial Flash | ||
| 16Kbit I²C EEPROM | ||
| 4.3-inch 480x272 TFT LCD with capacitive touch panel | ||
| USB Interface | ||
| LAN Interface | ||
| SD/MMC Host Interface (4 bits) | ||
| I2S Audio codec | ||
| 3-Axis accelerometer | ||
| 8-bit Interface camera | ||
| microSD card Interface | ||
| mikroBUS | ||
| PMOD1 | ||
| PMOD2 | ||
| User switch and Reset switch | ||
| Mono-turn 10KΩ Potentiometer | ||
| User LEDs & Power-on LED |
Please note that the “Default” and the “SDRAM Ready” board versions are factory pre-soldered with the shunts described in the user manual. You are free to switch from either configuration manually if needed. M13design of course will not be held responsible if the board is damaged during this process
Documents
| Document Title | Description | Format | Size | Date |
| M13-RA6M3-EK Datasheet | Datasheet | 462 KB | Dec. 16 2021 | |
| M13-RA6M3-EK User Manual | User Manual | 3.2 MB | Dec. 16 2021 | |
| M13-RA6M3-EK Schematic | Schematic | 241 KB | Mar. 02 2021 | |
| M13-RA6M3-EK PCB Layout | PCB Layout | 2.2 MB | Feb. 26 2021 | |
| M13-RA6M3-EK BOM | Bill of Material | XLSX | 22 KB | Feb. 26 2021 |
Software
| Document Title | Description | Format | Size | Date |
| M13-RA6M3-EK HTTP Server Demo | Project demonstrating the board's Ethernet connectivity using Oryx CycloneTCP TCP/IP stack | ZIP | 1.9 MB | Jul. 16 2021 |
| M13-RA6M3-EK HTTP Server Demo Application Note | Application Note for http_server_demo project | 1.2 MB | Jul. 16 2021 | |
| M13-RA6M3-EK cam lcd streaming Demo | Project demonstrating the board's camera interface live streamed on its LCD screen | ZIP | 1.2 MB | Sep. 6 2022 |
| M13-RA6M3-EK cam lcd streaming Application Note | Application Note for cam_lcd_streaming project | 1.2 MB | Sep. 6 2022 | |
| Guiliani RA SDK With M13-RA6M3-EK | Link to Guiliani RA SDK With M13-RA6M3-EK Evaluation Board Kit | Link | N/A | Oct. 13 2022 |
Hardware Partners
| Company | Type | Reference |
| Renesas | MCU & MPU, Power device | Renesas provides for the M13-RA6M3-EK board the R7FA6M3AH3CFC (RA6M3 Cortex-M4 MCU) and the DC/DC devices for generating the 3.3V, 1.8V power rails. Respectively the ISL80030AFRZ-T7A and the ISL80020AFRZ-T7A. Renesas also provides the Backlight driver ISL88002IH29Z-TK for the on-board LCD. |
| Wurth Electronik | Connectors, IC, Inductors | Wurth Elektronik provides most of the connectors on the M13-RA6M3-EK board as listed thereafter : The USB connectors, the RJ45, the SD Card, all the FFC/FPC connectors and all the male and female pinheaders. They also provide the 32.678KHz, 24Mhz, 25MHz crystals. In addition, the board is equiped with Wurth Electronik latest accelerometer, the WSEN-ITDS 3-Axis Acceleration Sensor. |
| Debug Probes | SEGGER provide for this board their "On Board" Debugger the J-link OB used for JTAG and SWD communication. A Virtual COM is also available through this hardware feature. |
Software Partners
| Company | Type | Reference |
| Oryx Embedded | TCP/IP stack, SSL/TLS & SSH encryption | Oryx Embedded offers a complete range of networking solutions for embedded systems, making the Internet of Things a reality. Their portfolio includes professional-grade TCP/IP components as well as SSL/TLS & SSH encryption to make your communications safe and secure. |
| Guiliani | Graphical User Interface Framework for embedded systems | TES Electronic Solutions GmbH is an innovative technology and design services company offering intellectual properties (IP), embedded hard- and software for a vast range of customers in global markets, such as in industrial, automotive, consumer electronics, as well as in semiconductors. Key capabilities include embedded software, graphics, RF & antenna, radar, mixed-signal and digital ASIC and FPGA designs. |
